Performance benchmarking

Spiking network model (PD14) of full circuitry below \(1\ \text{mm}^2\) surface area of cerebral cortex serves as benchmark for neuromorphic technologies. The statistics (dark cyan curve) of the simulated activity (dark cyan dots) is compared to reference data (thick yellow curve). Once sufficient accuracy is confirmed, the power measured during the simulation phase (light gray background) yields the consumed energy (dark cyan area corresponds to end point of light red curve, dark blue area indicates network construction phase, dark gray idle phase). The performance benchmark result (dark cyan star) contrasts the real-time factor (defined as the ratio of required wall-clock time and biological time covered by the model) against the required energy (expressed as energy per synaptic event). Figure from (Senk et al., 2026).

Performance data of different computing platforms

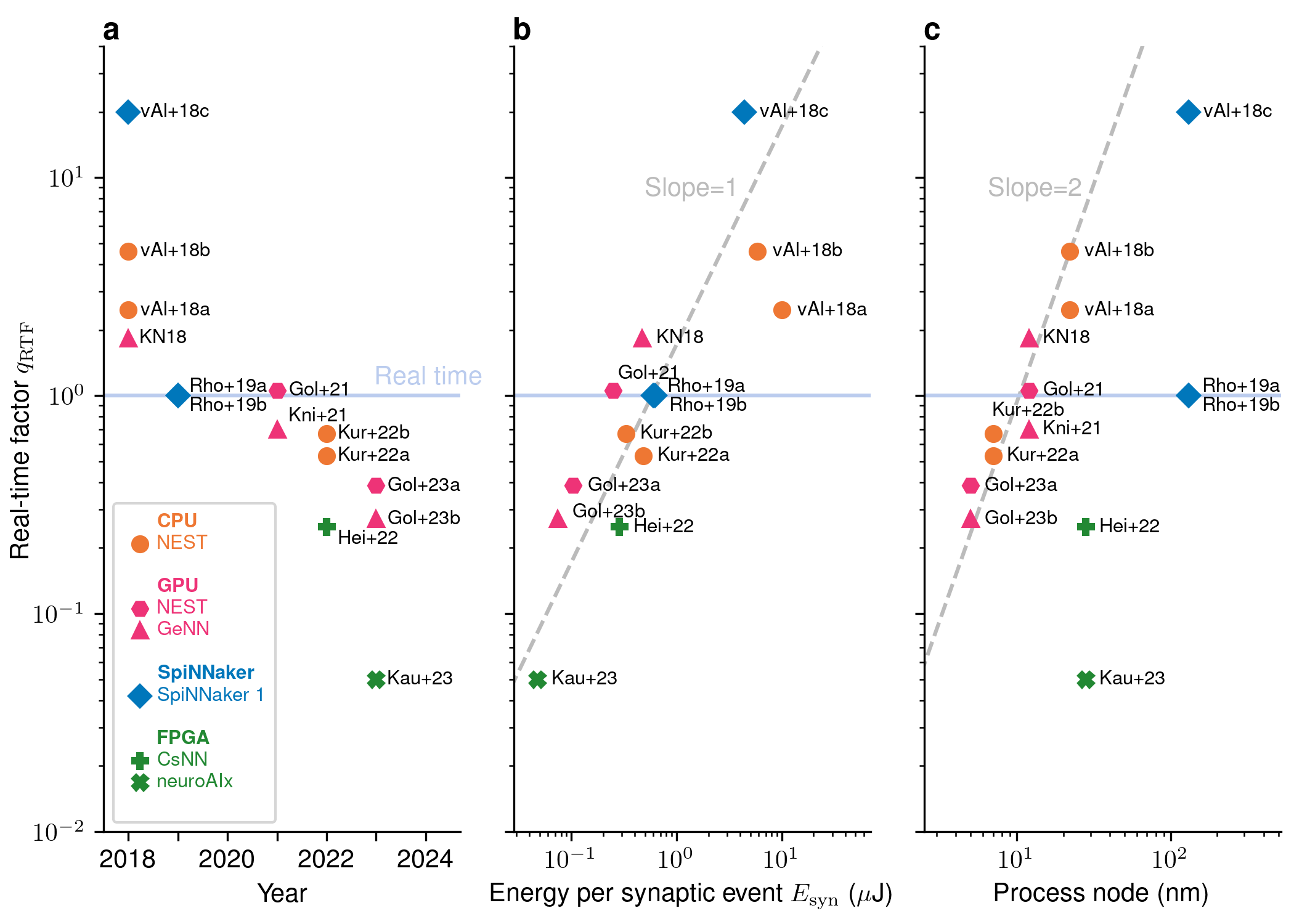

Progress of the community in reduction of time to solution and energy consumption for the PD14 model. Colors group hardware architectures and shapes indicate algorithmic approach (legend). Abbreviations in panels further disambiguate individual studies. (a) Ratio between time passed on wall-clock and stretch of time covered by the model (real-time factor) versus the year of publication in semi logarithmic representation. (b) Real-time factor as a function of energy per synaptic event in double logarithmic representation. Dashed line from fit through all data points with a slope of one. (c) Real-time factor versus process node in double logarithmic representation. Dashed line from fit through CPU and GPU data points with a slope of two. Citations of studies and values are given in the following table. Figure from (Senk et al., 2026).

Performance summary table

Study		Real-time factor \(q_\text{RTF}\)	Energy per synaptic event \(E_\text{syn}\) (\(\mu\text{J}\))	Simulator	#Nodes	System	Process node (nm)	External drive
vAl+18a	van Albada et al. (2018)	2.465	9.941	NEST CPU	12	2 Intel Xeon E52680v3	22	DC
vAl+18b	van Albada et al. (2018)	4.584	5.816	NEST CPU	3	2 Intel Xeon E52680v3	22	DC
vAl+18c	van Albada et al. (2018)	20	4.4	SpiNNaker 1	6	48 x 18 x ARM-968	130	DC
KN18	Knight and Nowotny (2018)	1.838	0.47	GeNN	1	Tesla V100	12	Poisson
Rho+19a	Rhodes et al. (2019)	1	0.601	SpiNNaker 1	12	48 x 18 x ARM-968	130	DC
Rho+19b	Rhodes et al. (2019)	1	0.628	SpiNNaker 1	12	48 x 18 x ARM-968	130	Poisson
Gol+21	Golosio et al. (2021)	1.055	0.25	NEST GPU	1	RTX 2080 Ti	12	Poisson
Kni+21	Knight et al. (2021)	0.7	nan	GeNN	1	Titan RTX	12	Poisson
Hei+22	Heittmann et al. (2022)	0.25	0.284	CsNN	345	IBM INC-3000	28	Poisson
Kur+22a	Kurth et al. (2022)	0.53	0.48	NEST CPU	2	2 AMD EPYC Rome 7702	7	DC
Kur+22b	Kurth et al. (2022)	0.67	0.33	NEST CPU	1	2 AMD EPYC Rome 7702	7	DC
Gol+23a	Golosio, Villamar, Tiddia et al. (2023)	0.386	0.104	NEST GPU	1	RTX 4090	5	DC
Gol+23b	Golosio, Villamar, Tiddia et al. (2023)	0.272	0.074	GeNN	1	RTX 4090	5	Poisson
Kau+23	Kauth et al. (2023)	0.05	0.048	neuroAIx	35	NetFPGA SUME	28	DC

Benchmarking recipe

Cortico-cortical inputs	State whether DC or Poisson is used (see model description)
Initial conditions	Optimized initial conditions: distribute membrane potentials normally with population-specific mean and variance (see model description)
Warm-up time	Discard the initial 500 ms of model time from the data to be analyzed
Simulation duration	Accuracy: \(T_\text{model}=15\ \text{min}\), performance: \(T_\text{model}\ge 10\ \text{s}\)
Repeated simulations	Statistics across ten realizations of the model (RNG seeds)
Spike recording	Accuracy: yes; performance: no
Accuracy metrics	Compute distributions of 1) single-neuron firing rate (FR), 2) coefficient of variation (CV) of the inter-spike intervals (ISI), and 3) short-term spike-count correlation coefficients (CC), and compare with reference data
Performance metrics	Measure real-time factor \(q_\text{RTF}\) and the energy per synaptic event \(E_\text{syn}\) (include all contributions necessary for running the simulations at the power outlet)

Checklist with recommended model and simulation parameters for the PD14 model. Table adapted from (Senk et al., 2026).

References

Senk et al. (2026). Constructive community race: full-density spiking neural network model drives neuromorphic computing. Neuromorphic Computing and Engineering 6(1):012001. doi:10.1088/2634-4386/ae379a
